How to Build a Hunting Tripod Setup for Glassing and Shooting

A good hunting tripod setup is more than a set of legs. The tripod, head, quick-release system and the way you mount binoculars, a spotting scope or a rifle all need to work together. Building the system around how you actually hunt makes it easier to carry, faster to set up and more useful once you reach a glassing point.

This guide walks through the main decisions so you can build a tripod setup for glassing, shooting or a combination of both.

1. Start With the Way You Hunt

Before comparing specs, decide what the tripod needs to do most often. A hunter who spends hours seated behind binoculars has different priorities than someone who regularly glasses while standing or wants to use the tripod as a rifle support.

• Backcountry glassing: Packability, carried weight and enough stability for binoculars or a spotting scope matter most.
• Standing glassing: Maximum working height becomes more important, especially around brush or uneven slopes.
• Glassing and shooting: Look at the whole system, including the head and the way the rifle or rifle saddle will connect.
• Vehicle-based glassing: A compact option such as a window mount may handle some situations without deploying a full tripod.

2. Compare Tripod Weight, Packed Length and Height

Tripod specifications only matter when they match your use. Maximum height tells you whether a tripod can reach the positions you need. Minimum or packed length affects how easily it rides on a pack. Weight matters every mile you carry it.

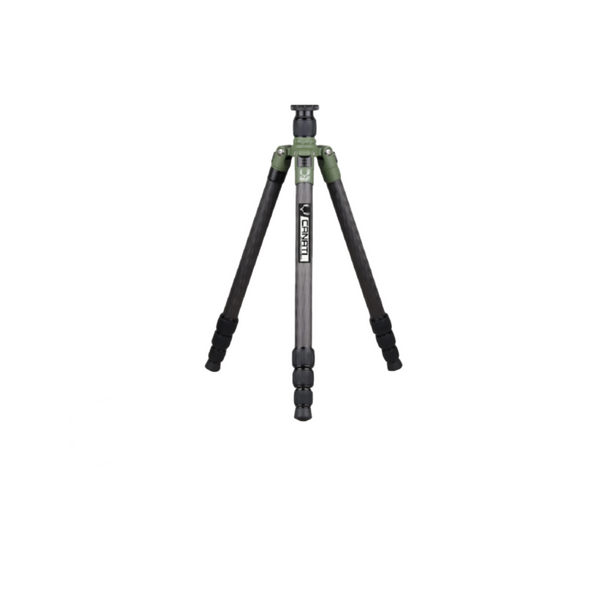

For example, the Canati Pro Carbon Tripod weighs 55 oz, collapses to 20 inches and extends to 64.5 inches. The Canati Redline Legs weigh 51 oz, collapse to 17.5 inches and extend to 62 inches. Hunters who want more working height can look at the Redline XL Legs, which extend to 67 inches.

Do not choose a tripod from maximum height alone. The best setup is the one that gives you the stability and working height you need at a weight and packed size you are willing to carry.

3. Choose a Fluid Head or Ball Head

The tripod head changes how the entire system feels in the field.

Fluid Heads

A fluid head is well suited to systematic glassing because it allows controlled pan-and-tilt movement. That makes it easier to grid a basin or ridgeline without jumping around the landscape. Canati options include the Redline Fluid Head, Pro Carbon Fluid Head and compact Micro Fluid Head.

Ball Heads

A ball head allows fast multi-direction positioning and can make sense when compact size and rapid repositioning are higher priorities. The Pro Backpacker Ball Head weighs 14 oz and uses ARCA quick-release plates, while the Pro Carbon Ball Head provides a higher listed load rating in a 17 oz head.

For a deeper comparison, read Fluid Head vs. Ball Head for Hunting Tripods.

4. Pay Attention to the Quick-Release Interface

Not every Canati head uses the same plate style, so this is worth checking before building a system. The Redline and Pro Carbon fluid heads use 50 mm Manfrotto-style quick-release plates. The Micro Fluid Head and Canati ball heads use ARCA-style plates.

If you already own optics, adapters or shooting accessories, choose the head and plates that fit the equipment you plan to use. Keeping an extra compatible quick-release plate on a commonly used optic can also reduce how often you move one plate between devices.

For a side-by-side explanation of the two mounting systems and which Canati heads use each one, read ARCA vs. Manfrotto Tripod Plates for Hunting.

5. Mount Binoculars for Hands-Free Glassing

Tripod-mounted binoculars remove much of the hand movement that becomes noticeable during long glassing sessions. The Muley Bino Adapter weighs 6 oz and measures 4.5 inches long.

For setup instructions and glassing tips, see How to Use a Binocular Tripod Adapter for Hands-Free Glassing.

6. Decide How You Want to Handle a Spotting Scope

A spotting scope benefits from controlled movement and a stable base, especially at higher magnification. A fluid head can make it easier to scan and then hold a specific area while evaluating an animal.

If you frequently switch between binoculars and a spotting scope, the Dual-Luxx is designed to keep both optics mounted at the same time. That lets you scan with binoculars and move to the spotting scope without repeatedly swapping the two optics on and off the tripod.

7. Add Rifle Support Only If It Fits Your Setup

Hunters who want to use a tripod as a shooting support need to think about the rifle-side connection as well as the tripod itself. The Muley Maniacs Canati Rifle Saddle provides an ARCA-base saddle for supporting rifles that are not being attached through a dedicated rifle ARCA rail.

Whatever method you use, verify that the tripod, head and mounting components are compatible and appropriately rated for the equipment being supported.

8. Consider a Complete Tripod Combo

If you would rather start with matched legs and a head, a complete combo removes some of the guesswork.

• Canati Redline Combo: 65 oz total weight, 20.5-inch minimum length, 65-inch maximum height, Micro Fluid Head and ARCA quick-release plates.
• Canati Pro Carbon Combo: 78 oz total weight, 23.5-inch minimum length, 68-inch maximum height and Pro Carbon Fluid Head.
• Canati Redline XL Combo: 110 oz total weight, 24.5-inch minimum length and 72-inch maximum height for hunters who prioritize extra working height.

Build the System Around Your Hunt

The best hunting tripod setup is not simply the tallest, lightest or strongest option. It is the combination of legs, head and accessories that matches the terrain, optics and hunting style you actually use.

Browse Canati hunting tripods, tripod heads, complete tripod combos and hunting tripod accessories to build your setup.
